Frameless Glass Balustrade | Duplex 2205 Hardware | Balcony Glass Balustrade with Safety Toughened Glass

Frameless Glass Balustrade | Duplex 2205 Hardware | Balcony Glass Balustrade with Safety Toughened Glass

Frameless Glass Balustrade |  Duplex 2205 Hardware | Balcony Glass Balustrade with Safety Toughened Glass
Frameless Glass Balustrade |  Duplex 2205 Hardware | Balcony Glass Balustrade with Safety Toughened GlassFrameless Glass Balustrade |  Duplex 2205 Hardware | Balcony Glass Balustrade with Safety Toughened GlassFrameless Glass Balustrade |  Duplex 2205 Hardware | Balcony Glass Balustrade with Safety Toughened Glass
CategoriesGlass Balustrade Railings
BrandROPO Custom Door and Window Solutions
ModelRPGR004
MaterialsDuplex 2205 Stainless Steel
Surface FinishMirror Polished / Satin Brushed / Matt Black
Glass TypeToughened / Laminated
Suitable Glass Thickness12 mm / 13.52 mm / 17.52 mm
Glass StandardAS/NZS2208, CE, SGCC
ApplicationGlass Balustrade
FOB portFuzhou / Xiamen
Terms of PaymentL/C, T/T
Update TimeDec 31,2024
Detail Information
Frameless Glass Balustrade Introduction
Frameless Glass Balustrade

If you have something even more sleek and minimalist in mind, then you can go for our frameless glass balustrade. This will give your home a contemporary look that you can be genuinely proud of.


Our toughened glass provides high levels of strength and durability. the base fixing provides good security and the glass is incredibly difficult to break.


Frameless Glass Balustrade
Frameless Glass Balustrade PDF
Frameless Glass Balustrade-Tempered Glass Standard Size
Frameless Glass Balustrade-Spigot
Frameless Glass Balustrade-Standoff
Frameless Glass Balustrade-Glass Clamp
Frameless Glass Balustrade-Handrail System
Hardware
Deck Mount Spigot
Black Color Deck Mount Spigot
Satin Brushed Deck Mount Spigot
Round Spigot
Side Spigot
Side Spigot
Core Drill Spigot
Side Spigot
Handrail
Handrail
Adjustment Standoff
Glass Clamp
Glass Processing
Outstanding specifications such as flatness, squareness, well-polished safety corners and accurate cut-outs are standard features we offer. Together with sophisticated edgework, ROPO supply standard sizes and cut to size project-specific toughened glass panel in bulk.
Glass
Glass Hole

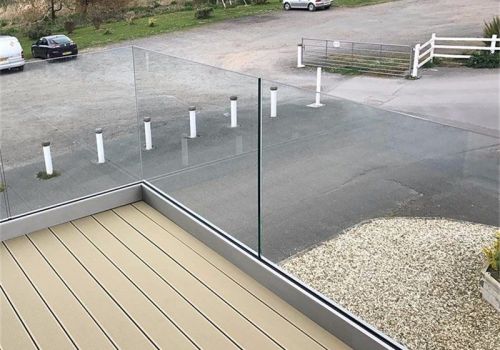

Frameless Glass Balustrade Pictures
glass balustrade
glass balustrade
glass balustrade
glass balustrade
Adjustment Guide
Spigot Adjustment
A. If the glass panel is leaning towards the side of spigot with the screw holes.

Step 1. Loosen the bottom screw slightly to allow the glass to move.
Step 2. Tighten the top screw until the glass is level.
Step 3. Tighten the bottom screw till tight.
Repeat above if needed.
B. If the glass panel is leaning away from the side of spigot with the screw holes.

Step 1. Loosen the top screw slightly to allow the glass to move.
Step 2. Tighten the bottom screw until the glass is level.
Step 3. Tighten the top screw till tight.
Repeat above if needed.
Frameless Glass Balustrade Packaging
Wooden Crate Packing

Safety and convenience are important considerations for glass packing. As a professional manufacturer of frameless glass balustrade, we understand the importance of having packing that offers adequate protection to the glass while it is safe & easy during all stages of transportation, handling and storage.

Frameless Glass Pool Fencing packing
